Electrical Console Systems - HMI
Easy-to-use and Convenient HMI Enclosures for Any Environment.
- The industry’s most comprehensive offering from pushbutton enclosures to consoles and HMI enclosures
- Attractive, functional, easy-to-use designs with ergonomic mounting options
- Designed to accept most major manufacturers’ operator interface devices and critical control components
- Unique solutions for harsh environments such as Food & Beverage and other wash-down areas
Mild Steel Industrial Computer Enclosure MCM
This mild steel floor standing enclosure, MCM, is pre-configured with integrated accessories to ease mounting of industrial computers and peripherals. It can be ordered with one single item number, with all relevant accessories included, which simplifies procurement.
Industry Standards
- CE UKCA
- GOST
Sizes range from 1600mm to 1600mm in height x 600mm to 600mm in width x 600mm to 800mm in depth.

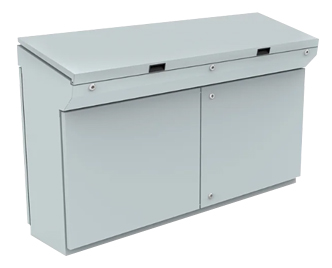

One-Piece Mild Steel Consoles Systems MPG
The mild steel compact console, MPG, in a IP 55/56 protection degree is available off the shelf. It has a hinged desk panel, and the ergonomic design allows for easy installation and access to HMI-equipment. It also increases the mounting space available. Stainless steel top panels may be used as an alternative when the console is exposed chemical agents, etc.
Industry Standards
- cULus_UL Listed
- CE, UK CA, UL
Sizes range from 985mm to 985mm in height x 600mm to 1600mm in width x 400mm to 400mm in depth.
Mild Steel Consoles Systems MPC
This mild steel combinable console system, MPC, has a IP 55/56 protection degree. It includes three interchangeable sections, top, desk and bottom. The system is very flexible and the various possible combinations can meet many design requirements. The ergonomic design of the top and desk units allows for easy installation and access to HMI-equipment, and increases the mounting space available. Stainless steel panels may be used as an alternative for some parts of the console, should it be exposed to chemical agents, etc.
Industry Standards
- UL 508A Listed; Type 12, 13, 4; File No. E92044
- cUL C22.2 No. 14-13; Type 12, 13, 4; File No. E92044
- IEC 61439
- CE, UK CA, UL
- IP
Sizes range from 250mm to 700mm in height x 600mm to 1600mm in width x 500mm to 985mm in depth.
One-Piece Console System Stainless Steel MPGS
The stainless steel compact console, MPGS, in a IP66/55 protection degree is available off the shelf. It has a hinged desk panel, and the ergonomic design allows for easy installation and access to HMI-equipment- It also increases the mounting space available. This console can be installed in virtually any environment, grade dependent.
Industry Standards
- cULus_UL Listed
- CE, UK CA, UL
Sizes range from 985mm to 985mm in height x 600mm to 1200mm in width x 400mm to 400mm in depth.
Stainless Steel Console System MPCS
This stainless steel combinable console system, MPCS, has a IP 55/56 protection degree. It includes three interchangeable sections, top, desk and bottom. The system is very flexible and the various possible combinations can meet many design requirements. The ergonomic design of the top and desk units allows for easy installation and access to HMI-equipment, plus increases the mounting space available. This console can be installed in virtually any environment, grade dependent.
Industry Standards
- UL 508A Listed; Type 12, 13, 4X; File No. E92044
- cUL Listed per CSA C22.2 No. 14-13; Type 12, 13, 4X; File No. E92044
- IEC 60529
- CE, UK CA, UL
Sizes range from 250mm to 700mm in height x 600mm to 1600mm in width x 500mm to 985mm in depth.
