The sealed linear encoders feature an aluminum housing that protects the scale, scanning carriage, and guideway from chips, dust, and splash water. Elastic sealing lips enclose the housing from below. The scanning carriage moves along the scale with low-friction guidance. A coupling, which connects the scanning carriage to the mounting base, compensates for misalignment between the measuring standard and machine slide.

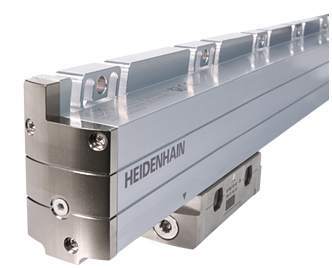

Heidenhain LC 100 Series Sealed Linear Encoder
- Absolute linear encoders
- Full-size scale housing
- High vibration tolerance
- Also available with functional safety

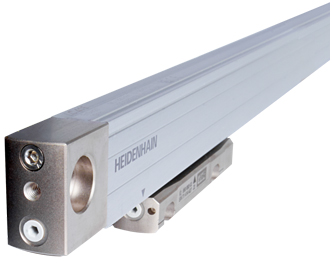

Heidenhain LC 400 Series Sealed Linear Encoder
- Absolute linear encoders
- Slimline scale housing
- Also available with functional safety

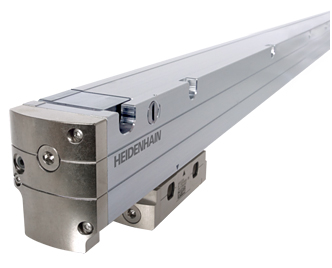

Heidenhain LC 200 Series Sealed Linear Encoder
- Absolute linear encoders
- Full-size scale housing
- High vibration tolerance
- Long measuring lengths of up to 28 m

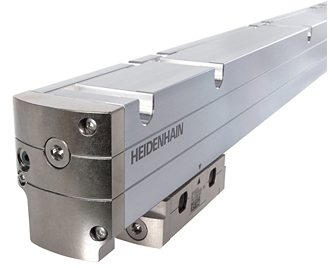

Heidenhain LB 383 Series Sealed Linear Encoder
- Incremental linear encoder
- Full-size scale housing
- Long measuring lengths of up to 72 m

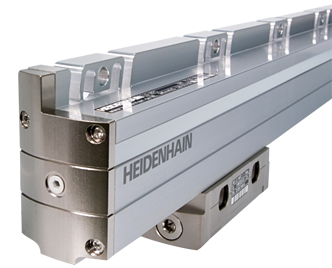

Heidenhain LS 100 Series Sealed Linear Encoder
- Incremental linear encoders
- Full-size scale housing
- High vibration tolerance

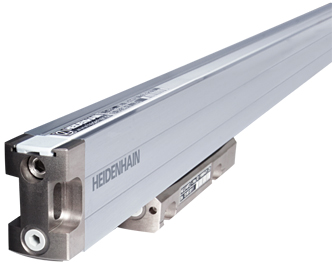

Heidenhain LS S00 Series Sealed Linear Encoder
- Incremental linear encoders
- Slimline scale housing
- For limited installation space
Contact ATI Systems for Heidenhain Sealed Linear Encoders
