HEIDENHAIN offers comparator encoders for the calibration and acceptance testing of machine tools. These modular sytems deliver very high measurement accuracies with optical scanning and a sturdy measuring standard. Robust and easy-to-use, they are well-equipped for frequent usage under shopfloor conditions.

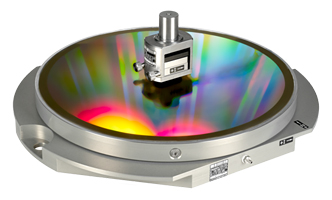

Heidenhain KGM 200 Machine Tool Inspection Device
- Grid plate for in-plane linear motion
- Circular interpolation test
- Evaluation of controller parameters

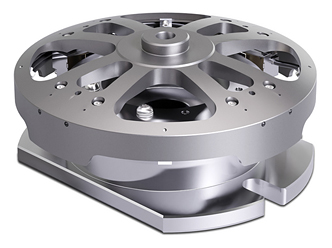

Heidenhain RVM 4000 Machine Tool Inspection Device
- Position accuracy of rotary axes
- Easy mounting
- Dynamic and high-resolution measurement
Heidenhain ACCOM 4.0 Machine Tool Inspection
- PC software for machine calibration
- Standardized calibration and evaluation
- Usable only with the RVM 4000 (at present)
Contact ATI Systems for Heidenhain Machine Tool Inspection Devices
