Evaluation units and evaluation software from HEIDENHAIN feature numerous metrology and statistical analysis functions, ensuring a solution for every application. In automation applications, measurement results can be further processed through integrated switching functions. And thanks to a splash-proof front panel and rugged cast-metal housing, the HEIDENHAIN evaluation units can easily handle harsh shop environments.
Heidenhain GAGE-CHEK 2000 Series Digital Readout
- Evaluation unit for reliable measurement and simple evaluation
- 7-inch screen for intuitive multitouch operation (800 x 480 pixels)
- Up to three axes (1 VPP, 11 µAPP, EnDat 2.2, TTL)
- Switching functions for simple automation tasks

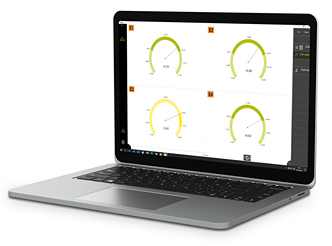

Heidenhain GAGE-CHEK 4000 SW Series Digital Readout
- Evaluation software for reliable meaurement data collection
- LOG function for uploading data directly into Excel
- Intuitive user interface
- Configurable axis naming
- Graphical dial gage for measurement visualization
Heidenhain ND 280 Series Digital Readout
- Digital readout for measuring and inspection stations
- 4.3-inch screen and keypad
- One axis (1 VPP, 11 µAPP, EnDat 2.2)
Contact ATI Systems for Heidenhain Digital Readouts Metrology Applications
