Level Converters HTL >>> TTL / RS422 resp. TTL / RS422 >>> HTL, Potential Separators and Direction Decoders

Level Converter, Directional Decoder and programmable Pulse Divider IT210:

Level Converter, Directional Decoder and programmable Pulse Divider IT210

Level Converter, Directional Decoder and programmable Pulse Divider IT210

Short description on IT210:

The Level Converter, Directional Decoder and programmable Pulse Divider IT210 is a universal interface used to measure incremental systems with diverse functions such as Level conversion (RS422, HTL single ended, HTL differential, TTL and vice versa), Division of two-track A / B pulses with adjustable ratio 1: 1 to 1: 4096, Division of the Z pulse with adjustable ratio 1: 1 to 1: 256, External HTL signals for various functions, Implementation between the two types of representations for the direction of rotation (A/B 90 °, A/B Dir and vice versa, Division possible).

  • Pulse input in format A, /A, B, /B, Z, /Z [RS422, HTL
  • Pulse input in format A, B, Z [HTL]
  • Input frequency up to 1 MHz
  • Pulse output in format A, /A, B, /B, Z, /Z [RS422, HTL]
  • Pulse output in format A, B, Z [HTL]
  • Power supply 9 ... 30 VDC
  • Settings via DIL switches
  • Level conversion (RS422, HTL single ended, HTL differential, TTL and vice versa)
  • Division of two-track A / B pulses with adjustable ratio 1: 1 to 1: 4096
  • Division of the Z pulse with adjustable ratio 1: 1 to 1: 256
  • External HTL signals for various functions
  • Implementation between the two types of representations for the direction of rotation (A / B 90 °, A/B Dir and vice versa, Division possible)
  • Snap-on housing for top hat rail (acc. EN 60715)
  • Dimension (B x H X T) 22,5 x 102 x 102 mm

Download Brochure
Download Product Specifications

Get a Quote


Universal Level Converter and Direction Decoder PU210:

Universal Level Converter and Direction Decoder PU210

Universal Level Converter and Direction Decoder PU210

Short description on PU210:

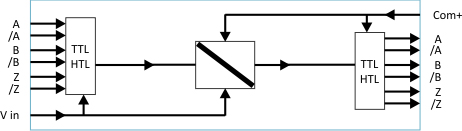

This Universal Level Converter and Direction Decoder PU210 direction decoder and potential isolation amplifier accepts both single-track and two-lane incremental encoder signals at the input, which can optionally be designed as RS422 / TTL or as HTL level (10 ... 30 V). If the signal is a rotation-related signal, the direction can either be defined by a 90° phase shift of the channels A and B or by a static direction signal.

Independent of the level and the directional signal at the input, the signals A, / A, B, / B and Z, / Z are available at the output, the direction of rotation again being available in the format A, B with 90° phase shift or as a static signal. The output uses push-pull stages, whereby the output level is approx. 1.5 V lower than the supply voltage of the device, which can be 5 ... 30 VDC.

  • 1 pulse input with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
  • Input frequency up to 500 kHz
  • 1 pulse output with format A, /A, B, /B, Z, /Z [RS422, HTL]
  • Power supply 5 ... 30 VDC
  • Potential separation between input and output
  • Possibility to convert A, B / 90 ° directional information into static directional signal and vice versa
  • Connections on the input as well as on the output either via sub-D plugs or plug-in screw terminals (parallel connections)
  • Snap-on housing for top hat rail (according to EN 60715)

Download Brochure
Download Product Specifications

Get a Quote


Level Converter HTL / TTL / RS422 PU202:

Level Converter HTL / TTL / RS422 PU202

Level Converter HTL / TTL / RS422 PU202

Short description on PU202:

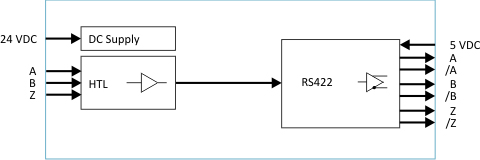

The Level Converter HTL / TTL / RS422 PU202 convert incremental HTL pulses (10 ... 30 VDC) into a differential TTL and RS422 formats (including inverted signals). At the same time, the device also convert various rotation information into the standard A, B, with 2 x 90° phase shift, as required by most end devices.

  • Pulse input with format A, B, Z [HTL] (10 ... 30 V)
  • Input frequency max. 200 kHz
  • Pulse output with format A, /A, B, /B, Z, /Z [RS422 / TTL]
  • Power supply 5 VDC
  • Converts HTL levels (A / B / Z) in TTL / RS422, incl. the inverted signals
  • Converts also static / sparate directional information into a dual channel A / B signal with 90° phase shift
  • Open print version with plastic snap-on housing for top hat rail (according to EN 60715)

Download Brochure
Download Product Specifications

Get a Quote


Level Converter TTL / RS422 / HTL PU204:

Level Converter TTL / RS422 / HTL PU204

Level Converter TTL / RS422 / HTL PU204

Short description on PU204:

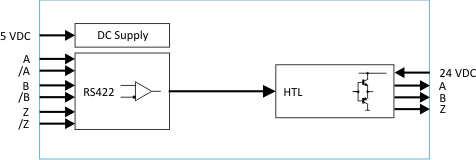

The PU204 Level Converter TTL / RS422 / HTL is used to convert incremental TTL pulses and RS422 signals to a 10 ... 30 V HTL pulse level in the format A, B, Z. In addition, one can obtain an A / B direction information with 90° phase shift to produce a static HIGH / LOW directional signal or separate directional pulses.

  • Pulse input with format A, /A, B, /B, Z, /Z [TTL / RS422]
  • Inut frequency max. 200 kH
  • Pulse output with format A, B, Z [HTL]
  • Power supply 10 ... 30 VDC
  • Converts TTL / RS422 signals (A, /A, B, /B, Z, /Z) in
  • HTL format with an output level of 10 ... 30 VDC
  • Generates additionally an A / B directional information with 90° phase shift‚ a static HIGH / LOW directional signal or separate directional pulses
  • Open print version with plastic snap-on housing for top hat rail (according to EN 60715)

Download Brochure
Download Product Specifications

Get a Quote


Dual Level Converter for HTL and RS422 / TTL GV210:

Dual Level Converter for HTL and RS422 / TTL GV210

Dual Level Converter for HTL and RS422 / TTL GV210

Short description on GV210:

The GV210 Dual Level Converter for HTL and RS422 / TTL is a universal encoder interface (without potential separation) with 2 incremental encoder inputs for level conversion, distribution and contactless as well as bounce-free switching of encoder or encoder signals in HTL or RS422 format.

  • 2 pulse inputs with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422]
  • Input frequency up to 250 kHz for asymmetrical and up to 1 MHz for symmetric signals
  • 2 control inputs for HTL / PNP signals [10 ... 30 VDC]
  • 2 output channels with format A, B, Z [HTL] or A, /A, B, /B, Z, /Z [RS422], each output adjustable separately
  • Power supply 12 ... 30 VDC
  • Snap-on housing for top hat rail (according to EN 60715)

Download Brochure
Download Product Specifications

Get a Quote
