The signal converters from HEIDENHAIN improve compatibility with the subsequent electronics by adapting the encoder signals to the interface. Signals can be interpolated, and different designs can be selected for greater flexibility in the application.

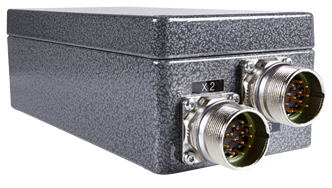

Heidenhain IBV 6000 Series Signal Converter
- Incremental interface at the input (1 VPP)
- Various output configurations (1 VPP and/or TTL)

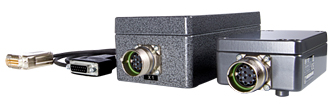

Heidenhain IBV 600, IBV 100, IBV 3000, and EXE 100 Series Signal Converter
- IIncremental interface at the input (1 VPP and/or 11 µAPP)
Incremental interface at the output (TTL)

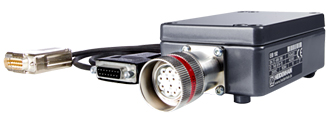

Heidenhain EIB 100 and EIB 3000 Series Signal Converter
- Incremental interface at the input (1 VPP)
- Serial interface at the output (EnDat 2.2, Fanuc Serial Interface, Mitsubishi high speed serial interface)

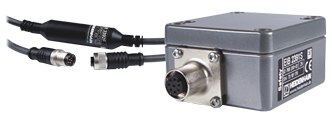

Heidenhain EIB 2391S, EIB 3392S, and EIB 3391Y Series Signal Converter
- Serial interface at the input (EnDat 2.2)
- Serial interface at the output (DRIVE-CLiQ / Yaskawa)
Contact ATI Systems for Heidenhain Signal Converters Adaptation to Interfaces
